9 各項目を設定し、[OK]をクリックします。

Image: Screenshot of the Power Management settings dialog box. The 'UPS Connection Settings' section is active. The first radio button 'Connect the UPS connected to this TeraStation' is selected. Inside its sub-panel, the 'UPS connection method' dropdown is visible. Under 'Shutdown condition when power is abnormal', the radio button 'When power is abnormal for 1 minute' is selected. Under 'Override shutdown condition', the checkbox 'Wait for iSCSI connection count to become 0 before shutting down TeraStation' is unchecked. Under 'After TeraStation shuts down, shut down the UPS?', the radio button 'No' is selected. Under 'Restart TeraStation after power is restored?', the radio button 'No' is selected. The second main radio button 'Connect the UPS connected to another Buffalo NAS on the network' is not selected, and its associated settings are disabled. At the bottom right are 'OK' and 'Cancel' buttons. A red note at the top right says '* is a required item.'

以上で、電源端子が1つの場合の手順は完了です。

電源端子が2つの場合

構成例：

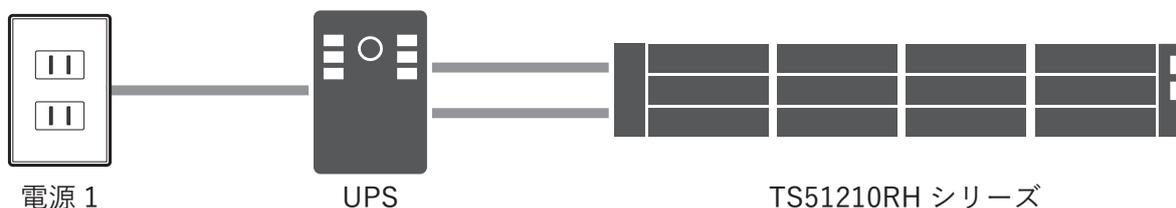

電源復旧後にTeraStationを起動する場合(推奨)

本製品の電源ケーブルを2本、同じUPSに接続します。

Diagram showing the power connection for the recommended configuration. On the left, a wall outlet labeled '電源 1' (Power 1) is connected to a UPS unit. The UPS unit is then connected to a TS51210RH series NAS unit. The NAS unit has two power inputs on its right side, both of which are connected to the output of the UPS unit.
Diagram showing the power connection for the recommended configuration. On the left, a wall outlet labeled '電源 1' (Power 1) is connected to a UPS unit. The UPS unit is then connected to a TS51210RH series NAS unit. The NAS unit has two power inputs on its right side, both of which are connected to the output of the UPS unit.

電源の冗長性を高める場合

本製品の電源ケーブルをUPSに接続します。もう一方の電源ケーブルは直接コンセントに接続します。電源は異なる電源系統に接続して、冗長性を高めてください。
